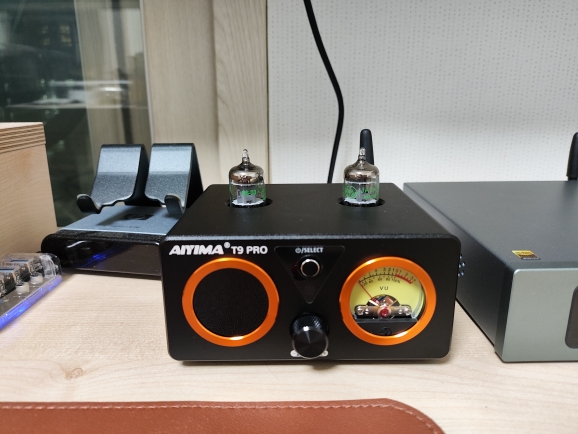

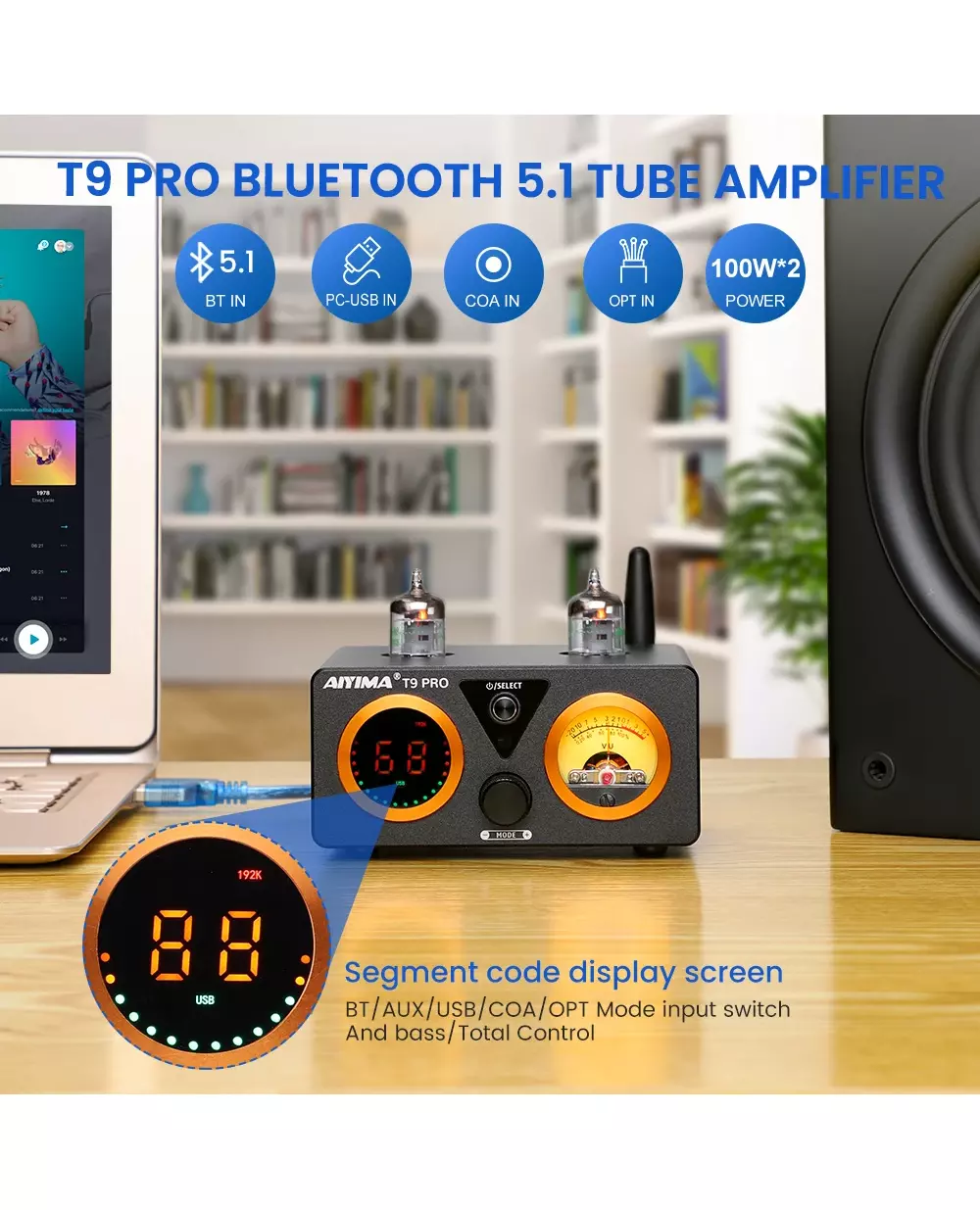

AIYIMA T9 PRO APTX HD Bluetooth Amplifier Audio 100Wx2 HiFi Stereo Power Amplificador USB DAC COAX OPT VU Meter Tube Amplifier
- View all variations as list
Please sign in so that we can notify you about a reply
Descriptions:
T9 PRO TPA3250 power amplifier 100Wx2
Chipset: TPA3250+Jan5725+QCC3031+ES9018K2M+SA9123L+OPA1656+NJW1194
PC-USB sampling rate: 24bit/192khz, 16bit/192khz, 24bit/96khz
PC-USB operating system: Windows XP / VIsta7/8/10 / Max OS/MAC/Linux
Bluetooth/optical fiber/coaxial sampling rate: 24bit44.1khz/24bit192khz/24bit192khz
Bluetooth chip: QCC3031, Bluetooth 5.0, stereo, support IIS, SPDIF, HFP, TWS, aptX, aptxHD

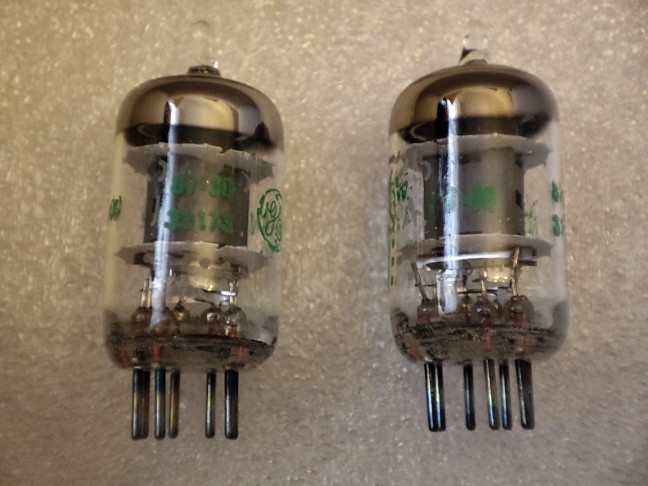

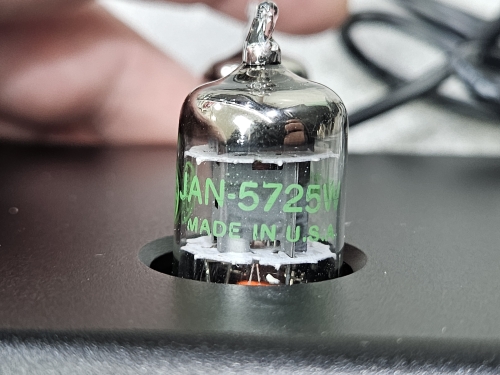

Tube model: JAN5725
The pipes that can be replaced are: 6AK1П, 6AK5, 6K4, EF95.6J1, GE5654, etc.
Speaker impedance: 4-8Ω
Output power: 100W*2 (4 Ohm load)
AUX output amplitude: 2V
Signal-to-noise ratio: ≥102dB
Input sensitivity: 1.4V
Frequency response: 20-20kHz (±1.5dB)
Total harmonic distortion: 0.03% (1kHz 1w)

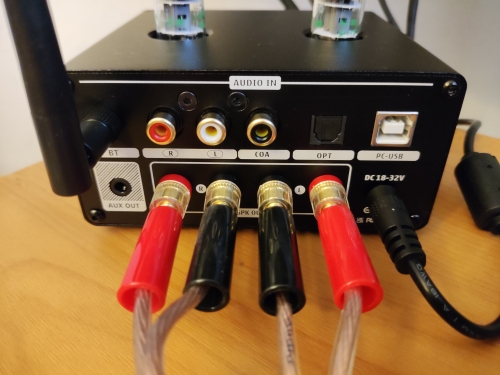

Input mode: RCA/Bluetooth/PC-usb/optical fiber/coaxial
Supported devices: mobile phones, tablets, computers, MP3, TVs, etc.
Output mode: passive speaker, active speaker, post-stage power amplifier
Working power supply: DC18V-32V, 3A or more
Size: 290*240*90mm
Q: All my cables are connected, but there is no sound output?
A: 1. Check whether the screen lights up. If the screen does not light up, briefly press the ON/OFF key to start the machine.

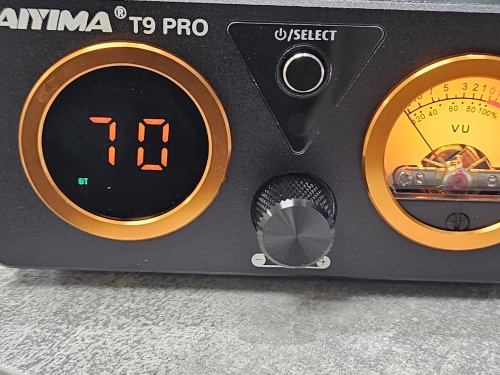

2.Check the screen volume value. If the volume value is too low, turn the encoder knob or the remote control to the right to increase the volume.
3.If the above two points are normal, check whether the playback device of the input sound source is paused, muted, or the volume is at the minimum.
Q: Why is the sound distorted?
A: The input level may be too large. If the volume of the sound source equipment is adjusted to the maximum, and the volume of the machine is also adjusted to the maximum, it is easy to be distorted. At this time, turn down the volume of the sound source input device or machine.
Q: Why does the volume of the machine remain the same, but the sound level is different when connecting to different audio sources (for example, connect a CD first, then a mobile phone)?
A: The amplitude of electrical signals output by different playback devices is different. For example, mobile phones are usually 0.35V, while CDs are 1V. The natural sound size is different.
Q: Why does the horn make a loud current sound?
A: If you use a power supply other than the original standard, please replace the power supply before testing. Many power sources on the market have large interference coefficient of the text wave, which will cause a large current sound.
Q: Why does the speaker make a loud buzzing sound when I plug in the input cable and do not connect the playback source?
A: When the unshielded signal line is unloaded, the interference signal will enter the power amplifier for amplification. It is recommended to replace it with shielded signal wire or unplug the signal wire.
Q: Why can't I find the Bluetooth pairing name?
A: Since power consumption is considered in the design of this machine, Bluetooth does not work when other channels are used. You must switch to Bluetooth input mode to search for pairing.
Q: can I change the tube directly without turning off the power?
A: No, because the machine works under high voltage, the hot plug electronic tube may burn out and damage the machine.
Q: Why does Bluetooth sound intermittent?
A: When using Bluetooth to test the distance, it is normal that the sound is not stuck or disconnected (without any obstacles) within 10 meters.(Note: The router will interfere with the Bluetooth signal. Don't get too close!)

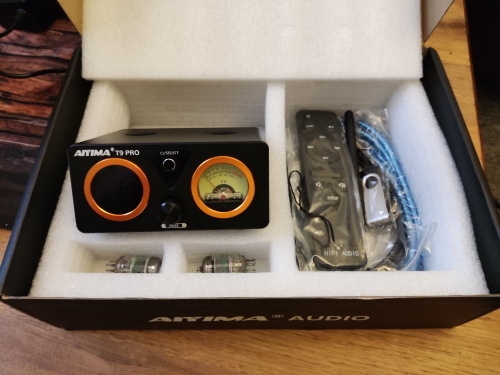

Package included:
1Pcs T9 PRO tube amplifier + 1Pcs Power adapter(optinal)
AIYIMA Model
T9 Pro
Certification
CE,FCC,RoHS
Channels
2 (2.0)
Color
T9 PRO 24V EU
Hign-concerned Chemical
None
Maximum Power Per Channel
100W
Model Number
T9 PRO
Origin
Mainland China
Package
yes
Ships From
CHINA
