Manual Hydraulic Hole Opener Iron Set Sheet Metal Punching Hydraulic Tool Set

Product description:

★ Our products are equipped with 22mm / 0.9 inch, 27.5mm / 1.1 inch, 34mm / 1.3 inch, 43mm / 1.7 inch, 49mm / 2.0 inch, 60.8mm / 2.4 inch six mold and superior 6 tons punch.

★ Punch is used to stamp mild metal sheets. It has the advantages of good design, convenient operation, high pressure and high efficiency, and is an ideal tool for the construction site.

★ Suitable for stamping metal (steel plate, stainless steel, etc.)

★ Come and buy it! what are you waiting for! ! !

Features:

Product model: TPA-8

Manual hydraulics: accessories that can be rotated 360°

Stroke: 22 mm

Punching range: 22.5-60.8 mm / 0.9-2.4 inches

Punching conditions: opening a low carbon steel plate of 3.2 mm / 0.12 inch or less

Maximum opening force: 90KN

Mold configuration: Φ22, 27.5, 34, 43, 49, 60.8mm

2 fastening bolts: about 19mm, about 11mm in diameter

6-hole punch shape round, tool steel polished: 22 mm / 0.9 inch, 27.5 mm / 1.1 inch, 34 mm / 1.3 inch, 43 mm / 1.7 inch, 49 mm / 2.0 inch, 60.8 mm / 2.4 inch

Oil capacity: 60 ml / 0.06 liter

Traction bolt type: 7/16 x 3/4", 3/4 x 3/4"

Ambient temperature: -20 ° C -40 ° C

Product weight: 4.5 KG

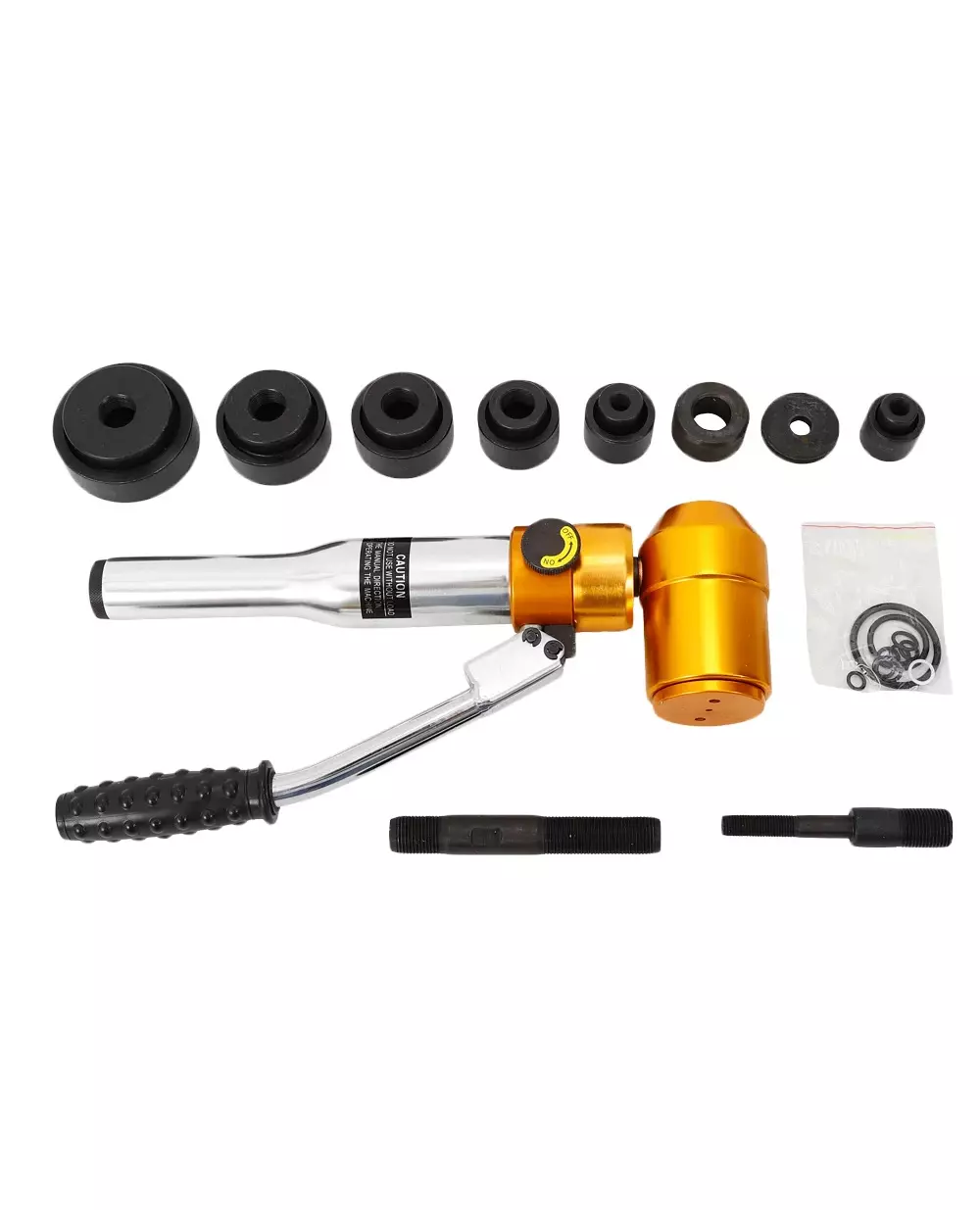

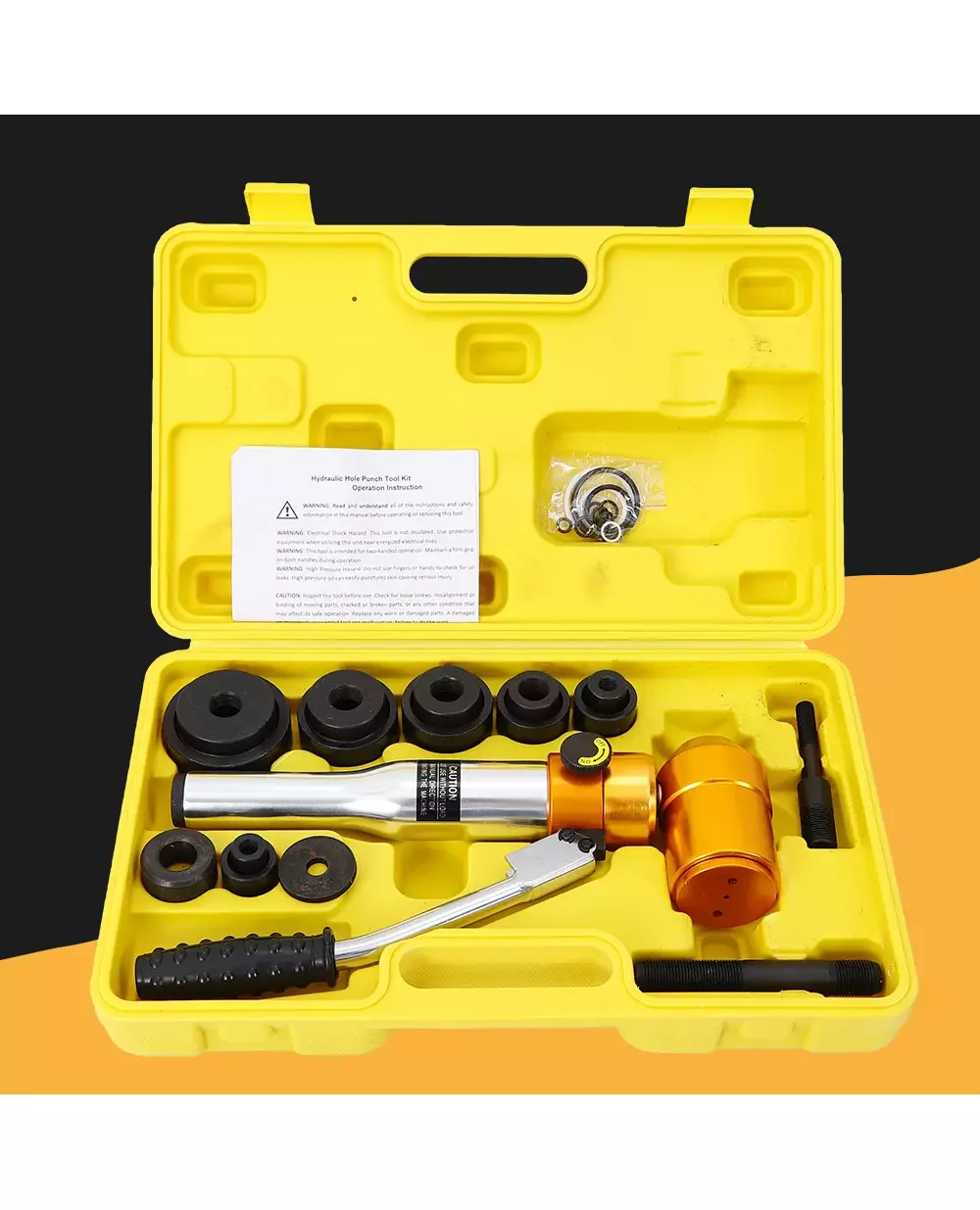

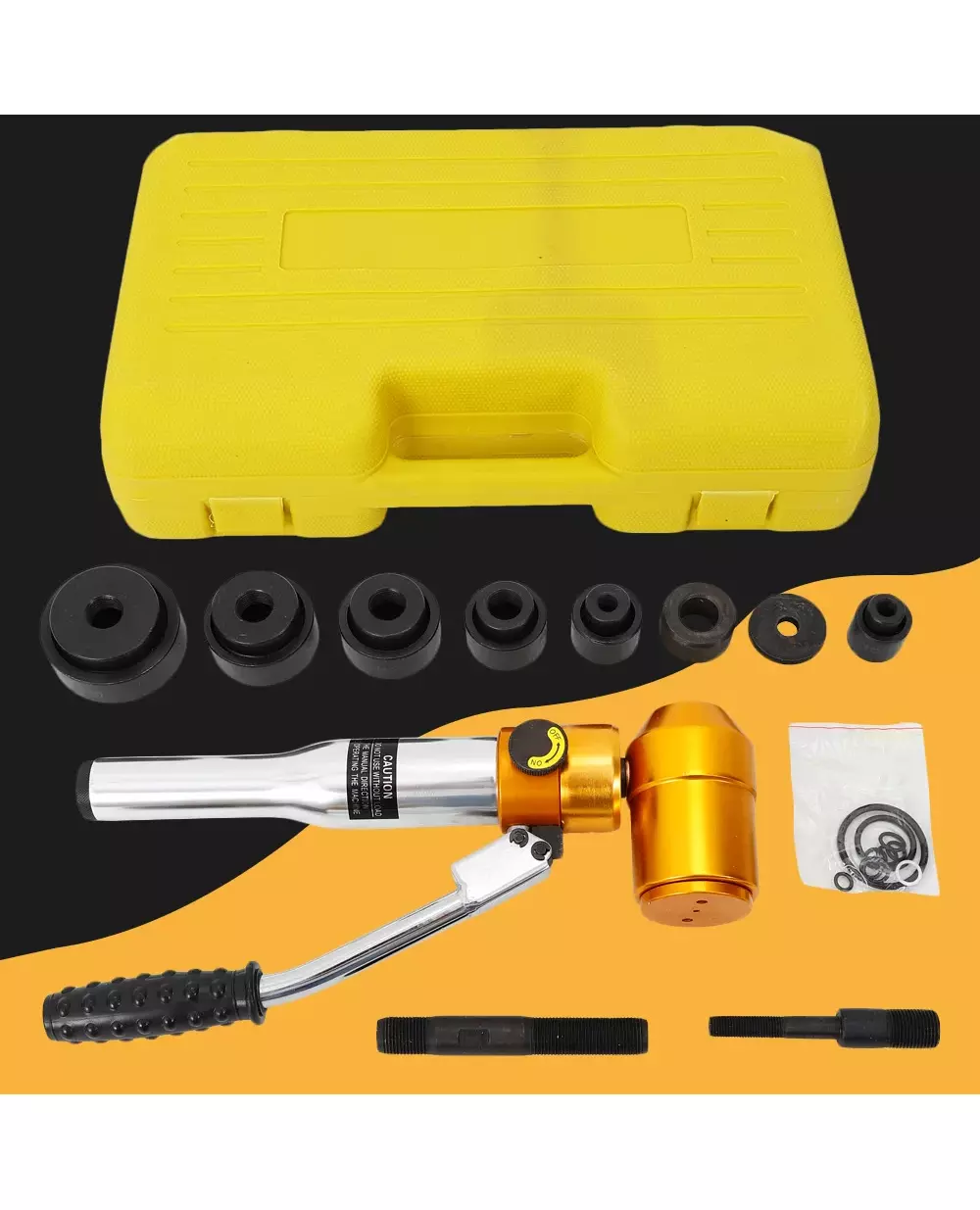

The package includes:

6 x punch mold (22, 27.5, 34, 43, 49, 60.8mm)

2X drawing studs (7/16 x 3/4", 3/4 x 3/4")

1 x puncher

1 seal kit

1 plastic box

1 x English manual

Note: Manual measurement, please allow 1-3cm error
