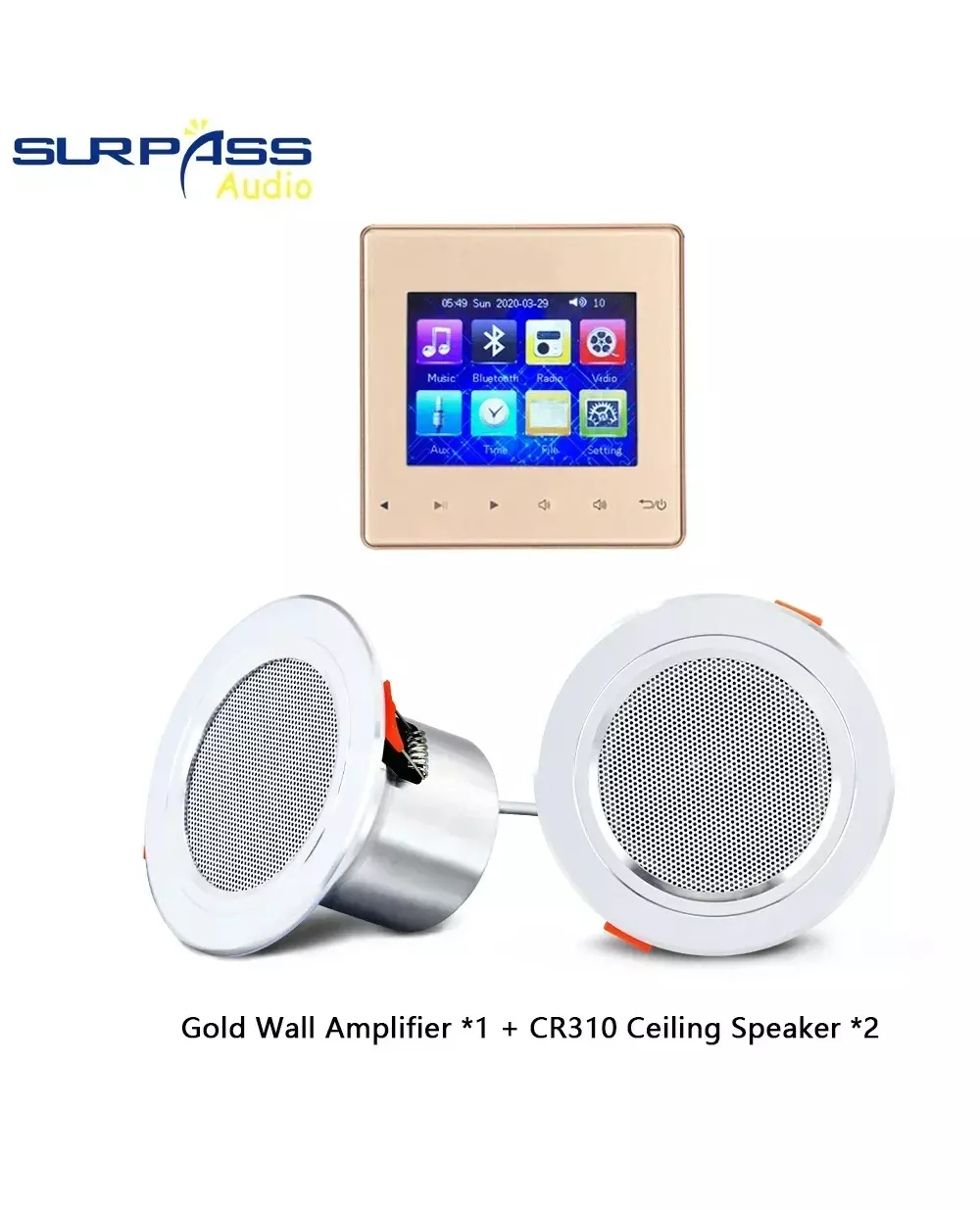

Smart Home Mini Touch Key Audio Bluetooth Wall Amplifier 2*20W Fm Radio Doorbell with Coxial Ceiling Speaker PA System Bathroom
For the speaker is only 10W or 12W 8ohm, it is only suitable for background music playback, if you want better sound quality, please consult us.
SPECIFICATIONS:
Mini Wireless Bluetooth Audio Music Touch Key In Wall Amplifier Specifications:
● 2.8-inch Display, 320*240 Resolution
● Key Touch
● Power Supply Mode: AC 110-250V
● Output Power: 2*20W(Digital power amplifier)
● Audio Inputs one set; Output one set
● Video Player
● Timing output: one set
● Bluetooth: 4.0
● Bluetooth working distance: 10 meters
● Infrared remote control distance: 10 meters
● Frequency response: 20Hz-20KHz
● T.H.D: 0.03%
● SNR: ≥98dB
● Installation: 86 standard wire box, front wall
● Product size: 86*86*10mm
● Wire Box Opening Size: 86*86*57mm
● Color: Black/White/Gold
CR310 3inch Mini In Ceiling Speakers Specifications:
● Power: 12W
● Impedance: 8Ω
● Sensitivity: 85dB
● 3'' Full range speaker driver
● Aluminum cylinder shell
● Installation Cutout Size: Φ95-100mm
● Product Size: Φ115x85mm
● Net Weight: 250g
● Gross Weight: 300g
CR313 Specification:
● 3'' Fashion Ceiling Speaker
● Moisture-proof plastic ceiling speaker with cover
● Power: 10W/8Ω
● Sensitivity: 85dB
● 3'' Full range speaker driver
● Plastic case with rear cover
● Installation Cutout Size: Φ95-100mm
● Product Size: Φ120x80mm
● Net Weight: 290g
● Gross Weight: 300g
● 2.8-inch Display, 320*240 Resolution
● Key Touch
● Power Supply Mode: AC 110-250V
● Output Power: 2*20W(Digital power amplifier)
● Audio Inputs one set; Output one set
● Video Player
● Timing output: one set
● Bluetooth: 4.0
● Bluetooth working distance: 10 meters
● Infrared remote control distance: 10 meters
● Frequency response: 20Hz-20KHz
● T.H.D: 0.03%
● SNR: ≥98dB
● Installation: 86 standard wire box, front wall
● Product size: 86*86*10mm
● Wire Box Opening Size: 86*86*57mm
● Color: Black/White/Gold
CR310 3inch Mini In Ceiling Speakers Specifications:
● Power: 12W
● Impedance: 8Ω
● Sensitivity: 85dB
● 3'' Full range speaker driver
● Aluminum cylinder shell
● Installation Cutout Size: Φ95-100mm
● Product Size: Φ115x85mm
● Net Weight: 250g
● Gross Weight: 300g
CR313 Specification:
● 3'' Fashion Ceiling Speaker
● Moisture-proof plastic ceiling speaker with cover
● Power: 10W/8Ω
● Sensitivity: 85dB
● 3'' Full range speaker driver
● Plastic case with rear cover
● Installation Cutout Size: Φ95-100mm
● Product Size: Φ120x80mm
● Net Weight: 290g
● Gross Weight: 300g
NOTES:
● In some country, the FM Radio Function may not works well, because the signal may be affected due to different frequencies in different countries and regions.
● Languages only support English and Chinese , please check before your purchase.
● For this device, speaker cable and power cable is not included.
① Use exceed 150-core pure copper speaker cable to connect speakers. Click to get:
200 core https://www.aliexpress.com/item/4000938426917.html
100 core https://www.aliexpress.com/item/1005001859469936.html
② Use power cable cord as the amplifier request (two cord).
● If there is any questions about the product or you need our technical support, please contact us.
● Connection Guide: https://youtube.com/playlist?list=PLo58qiwgS__xBYHIQWNrVbSPphvJ4VDB8
● Languages only support English and Chinese , please check before your purchase.
● For this device, speaker cable and power cable is not included.
① Use exceed 150-core pure copper speaker cable to connect speakers. Click to get:
200 core https://www.aliexpress.com/item/4000938426917.html
100 core https://www.aliexpress.com/item/1005001859469936.html
② Use power cable cord as the amplifier request (two cord).
● If there is any questions about the product or you need our technical support, please contact us.
● Connection Guide: https://youtube.com/playlist?list=PLo58qiwgS__xBYHIQWNrVbSPphvJ4VDB8
PACKAGE INCLUDED:
Package included depends on which type you purchased.
① Amplifier Kit included:
1 x smart on-wall amplifier
2 x 3inch coxial ceiling speaker
1 x mounted box
1 x remote control
1 x bracket and screw
② Wall Amplifier included:
1 x smart on-wall amplifier
1 x mounted box
1 x remote control
1 x bracket and screw
① Amplifier Kit included:
1 x smart on-wall amplifier
2 x 3inch coxial ceiling speaker
1 x mounted box
1 x remote control
1 x bracket and screw
② Wall Amplifier included:
1 x smart on-wall amplifier
1 x mounted box
1 x remote control
1 x bracket and screw
Application
Bathroom
Bluetooth
Support
Bluetooth Distance
8 meters
Channels
3 (2.1)
Color
gold amp -2CR310
Control
touch key
Feature
Waterproof
Feature1
Music player system controller
Feature2
Home music playback system
Feature3
Smart home player
Feature4
Smart home audio
Feature5
Background Music Panel
Feature6
intelligent playing
FM function
Yes
FM Range
87.5-108MHz
Function
support bluetooth,USB,TF card
Impedance
4-8Ohm
Installation
86 standard wire box, front wall
Material
Aluminum cylinder shell
Maximum Power Per Channel
20W
Model Number
PW215F+2CR310
Name
PA System Set
Ocassion1
Home Theatre
Ocassion2
Living room
Origin
Mainland China
Output Power
2*20W
Package
Yes
Power Supply Mode
AC 110-250VC
Product Size
86*86*10mm
Product Type
Home Amplifier
Radio Function
Built-in digital automatic FM radio, 30 stations
Remote Control
Yes
Ships From
Russian Federation
SNR
98dB
Speaker
3'' Fashion Can Ceiling Speaker
Support
USB, SD card
Support Bluetooth
Yes
