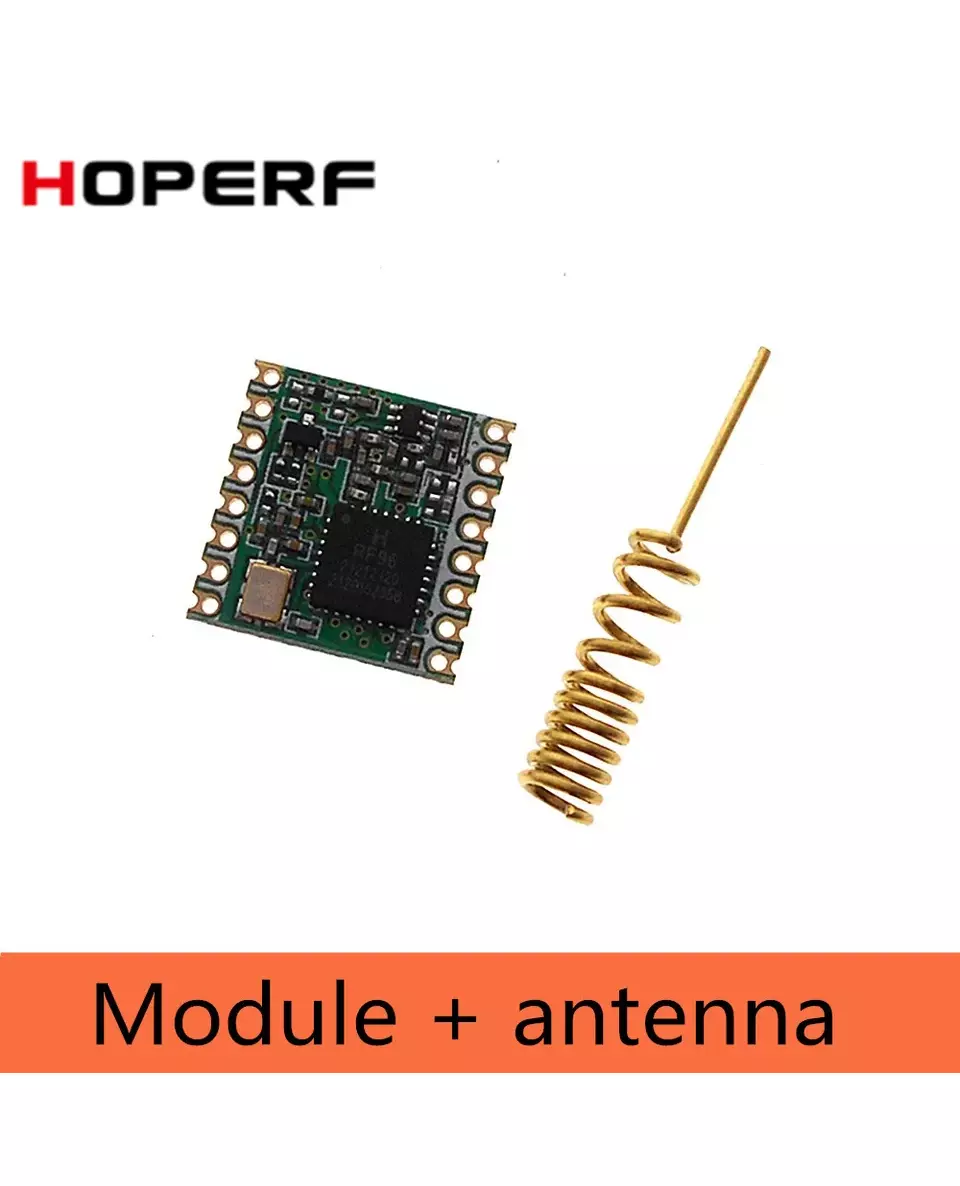

With antenna RFM95 RFM95W RFM96W RFM98W 433/868/915MHZ SX1276 SX1278 wireless transceiver module HopeRF ORIGINAL

Write a review
QUES827422046LPT
$446
+
Buy now
Add to wish list
Our advantages
Payment options
Delivery
Shipping time and rates:

RFM98W  433MHZ  USE  SX1278  MAIN CHIPS .

RFM96W  433MHZ  USE  SX1276 MAIN CHIPS .

RFM95W 868MHZ  AND RFM95W 915MHZ  USE  SX1276  MAIN CHIPS .


Special statement:
The RFM95 module uses RFM96 chip, and the picture is a physical map.
Mind customers please do not buy, thank you.
Do not accept the submission of disputes and bad reviews because the chip is RFM96, hereby declare.
  • RFM96 RFM96W  315MHZ 434MHZ 868MHZ 915MHZ LoRaTM Wireless Transceiver

    1. Descriptions of RF Transceiver Module RFM96W:


    The  RFM96W transceivers  feature  the  LoRaTM  long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.Using Hope RF’s patented LoRaTM modulation technique RFM96W can achieve a sensitivity of over -148dBm using a low cost crystal and bill of materials.


    The high sensitivity combined with the integrated +20 dBm power amplifier yields  industry  leading  link  budget  making  it optimal for any application requiring range or robustness. LoRaTM also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.


    These devices also support high performance (G)FSK modes for systems including WMBus, IEEE802.15.4g. The RFM96W deliver exceptional phase noise, selectivity, receiver linearity  and  IIP3  for  significantly lower  current consumption than competing devices.


    2. Features of RF Transceiver LoRa Module RFM96W:


    ● LoRaTM Modem.

    ● 168 dB maximum link budget.

    ● +20 dBm - 100 mW constant RF output vs. V supply.

    ● +14 dBm high efficiency PA.

    ● Programmable bit rate up to 300 kbps.

    ● High sensitivity: down to -148 dBm.

    ● Bullet-proof front end: IIP3 = -12.5 dBm.

    ● Excellent blocking immunity.

    ● Low RX current of 10.3 mA, 200 nA register retention.

    ● Fully integrated synthesizer with a resolution of 61 Hz.

    ● FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.

    ● Built-in bit synchronizer for clock recovery.

    ● Preamble detection.

    ● 127 dB Dynamic Range RSSI.

    ● Automatic RF Sense and CAD with ultra-fast AFC.

    ● Packet engine up to 256 bytes with CRC.

    ● Built-in temperature sensor and low battery indicator.

    ● Modue Size:16*16mm


    3. Applications of RF Transceiver Module RFM96W:


    ● Automated Meter Reading.

    ● Home and Building Automation.

    ● Wireless Alarm and Security Systems.

    ● Industrial Monitoring and Control

    ● Long range Irrigation Systems
