JINGSHA X99 Office Motherboard LGA 2011 V3 Kit Xeon E5 2640 V4 CPU + 2*8GB DDR4 RAM X99 DIY Computer combo set LGA2011
Save 48%
Please sign in so that we can notify you about a reply
Motherbaord set including:1*motherboard + 1* Xeon E5-2640V4 CPU + 2*8GB DDR4 REG ECC RAM
CPU:
Processor Series:Xeon E5 2650 V4 (10 cores / 20 threads)
Base frequency: 2.4GHz
Memory types : DDR4 1600/1866/2133
Max turbo frequency: 3.4GHz
Socket type: LGA 2011-3
3rd level cache: 25MB
Technology: 14nm
Power consumption: 90W
Note:
1: CPU is used, condition good, 1 year warranty
2: There may have some little physical scratches on the surface of the CPU, this is pretty normal.
3: All CPU are strictly tested by our store
Memory:
Type: DDR4 REG ECC server memory
Memory frequency : 2133MHz
Capacity: 16GB (2*8GB)

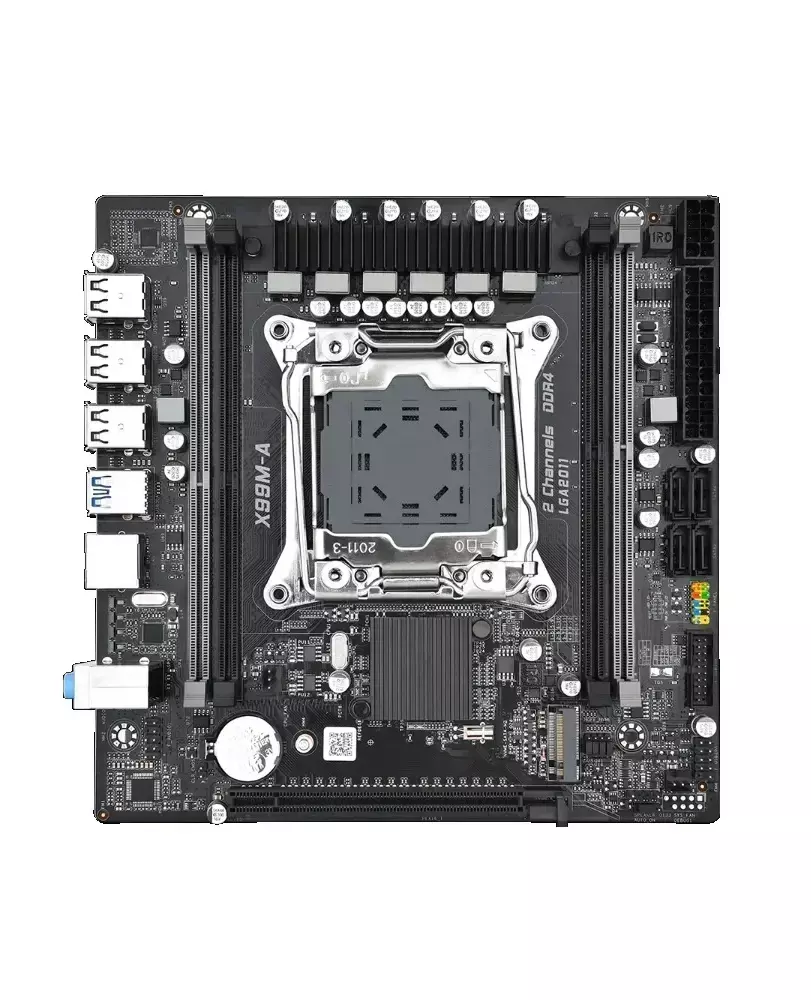

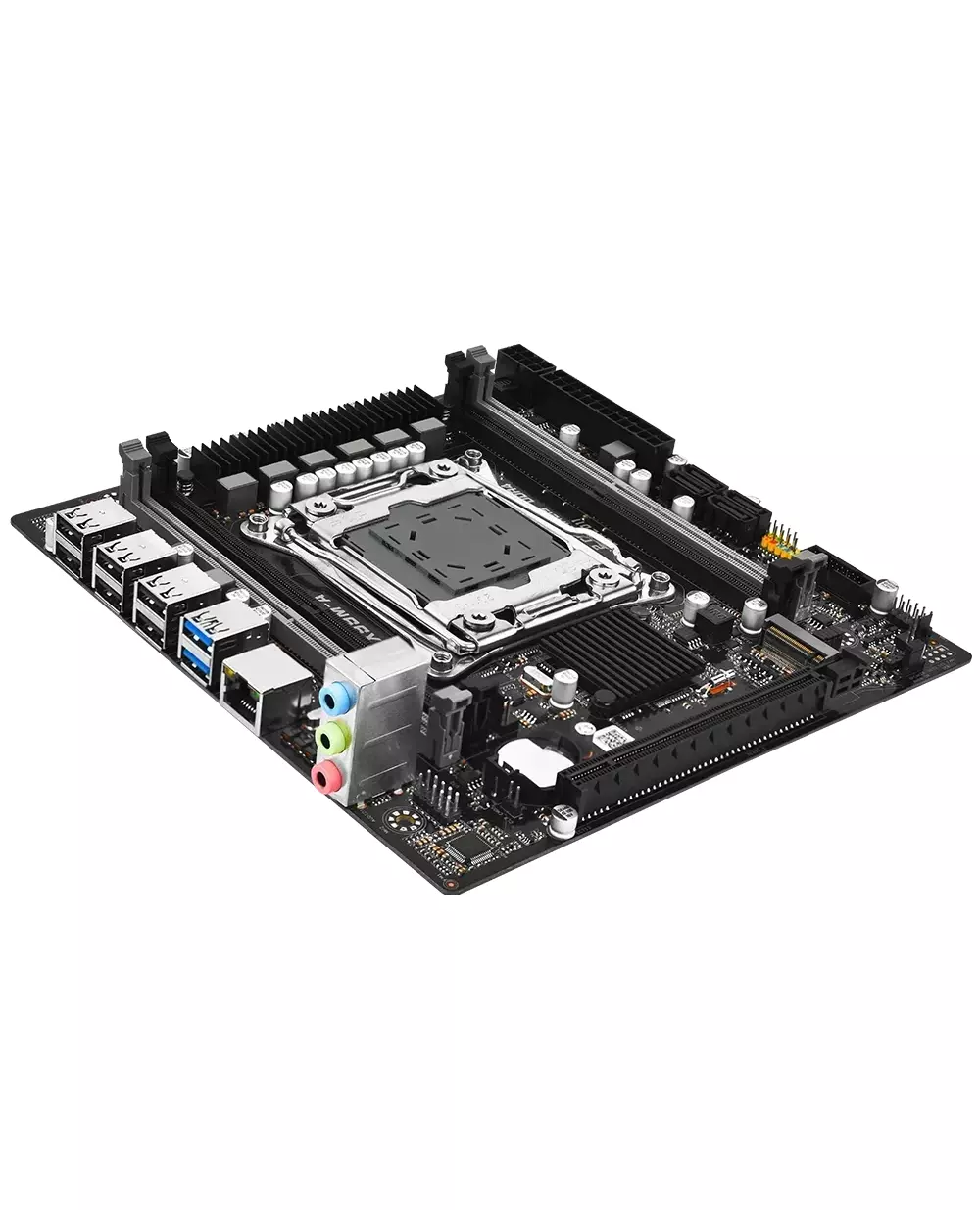

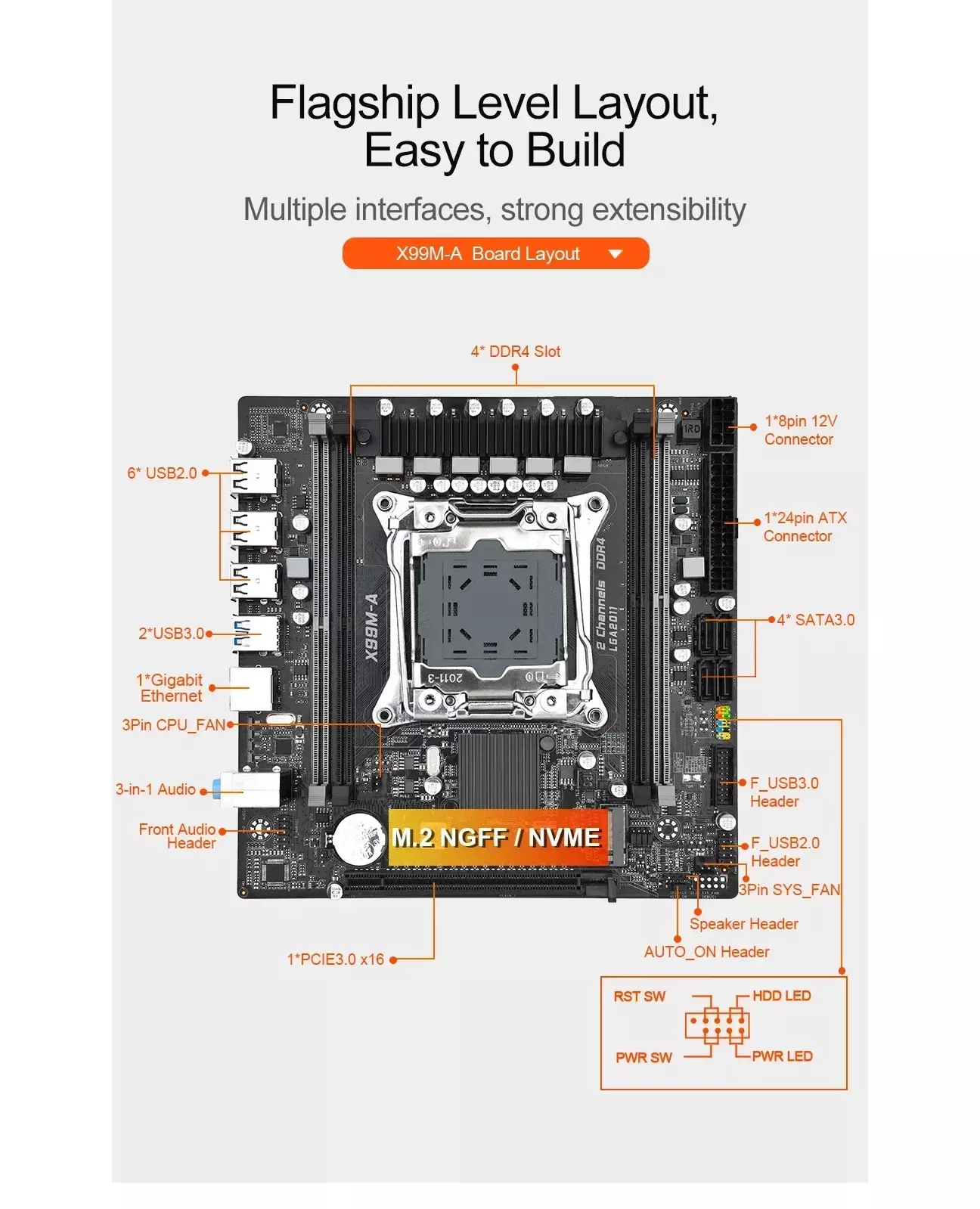

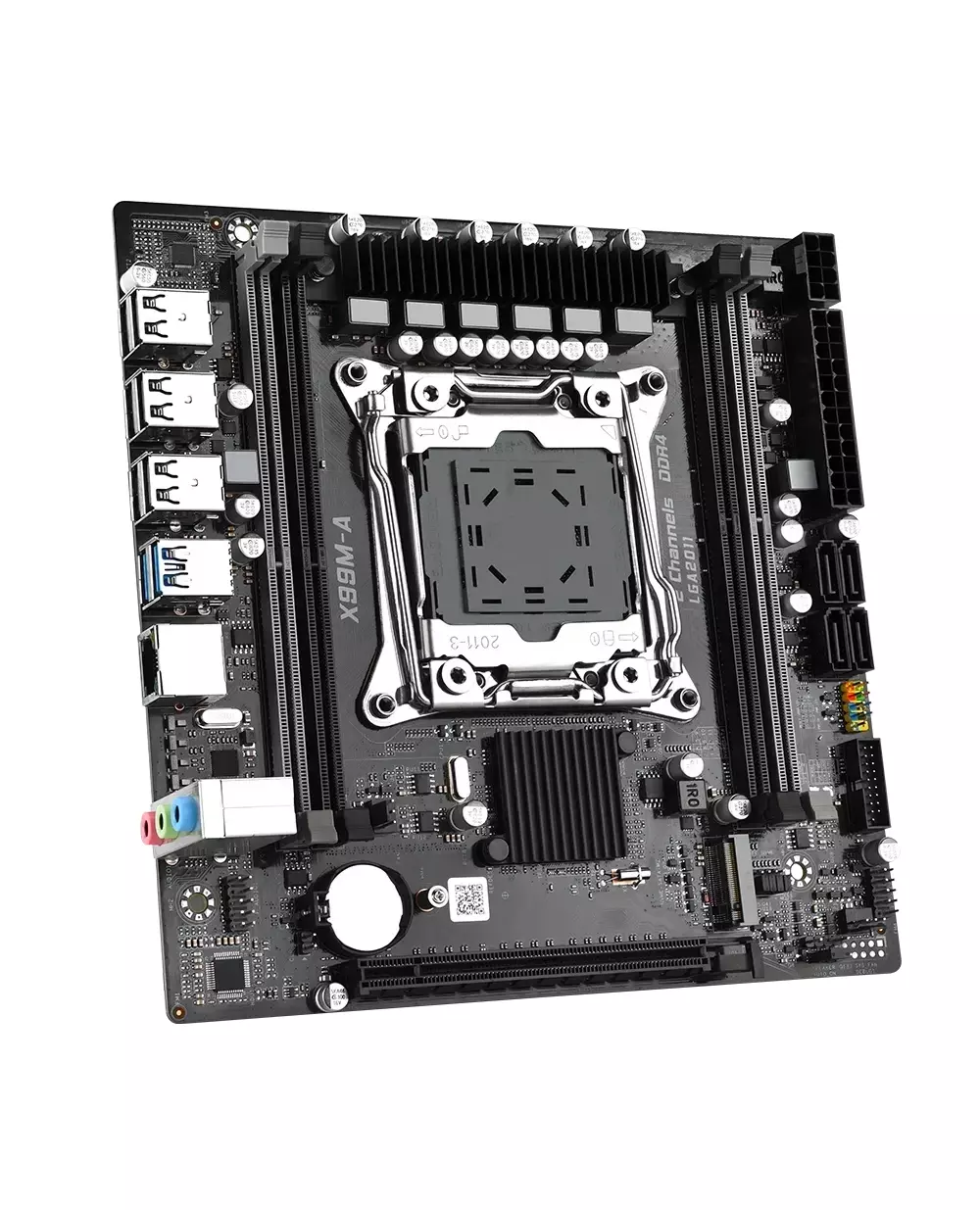

Motherboard Specification:
• Brand:JINGSHA ( JINGSHA and SZMZ belong to two sub brands of our company )
• Form Factor : M-ATX, 190mm x 190mm
• CPU socket: LGA 2011-3 , support LGA 2011-V3 Full Series CPU(Xeon E5 26xx V3 V4 series )
• Memory type: 4*UDIMM DDR4 1600/1866/2133/2400 dual channel up to 128GB
• Graphic slot: 1* PCI-E 16X
• Storage : 4*SATA3.0 Ports, 1*M.2 2280 NVMe x4 3.0 Port(or NGFF SATA3.0)
• USB Ports : 8*USB2.0Ports,4*USB3.0Ports
• LAN : Gigabit Ethernet LAN port
• Audio : Realtek ALC662 HD Audio .
• PSU Solution : 1* 8 Pin + 1* 24 Pin Power Supply
• Accessories : 1 x I/O Shield , 1 x SATA cable
• Integrated video card: No
Buying instructions:
1: The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
2: Please allow 1-3mm differs due to manual measurement.
3: Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4: This platformneeds powerful power supply. Please make sure your power supply can enough to supports this platform. (At least 500w brand power supply)
5: The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom
Bundle
Motherboard CPU RAM
Hard Drive Capacity
≥ 1.5TB
Hign-concerned Chemical
None
Memory Capacity
≥ 4GB
Model Number
X99M-A
Origin
Mainland China
Processor Model
E5-2640V4
Use
Household
