Professional 88VF Automatic Electric Tiling Machine 5 Gears Rechargeable Floor Laying Leveling Tool Bubble Leveler Power Tools

Features:

1. Suitable for wall tiles and small floor tiles: Used for the movement and installation of floor tiles and wall tiles, greatly improving work efficiency.

2. Intelligent frequency conversion control: multi station adjustment

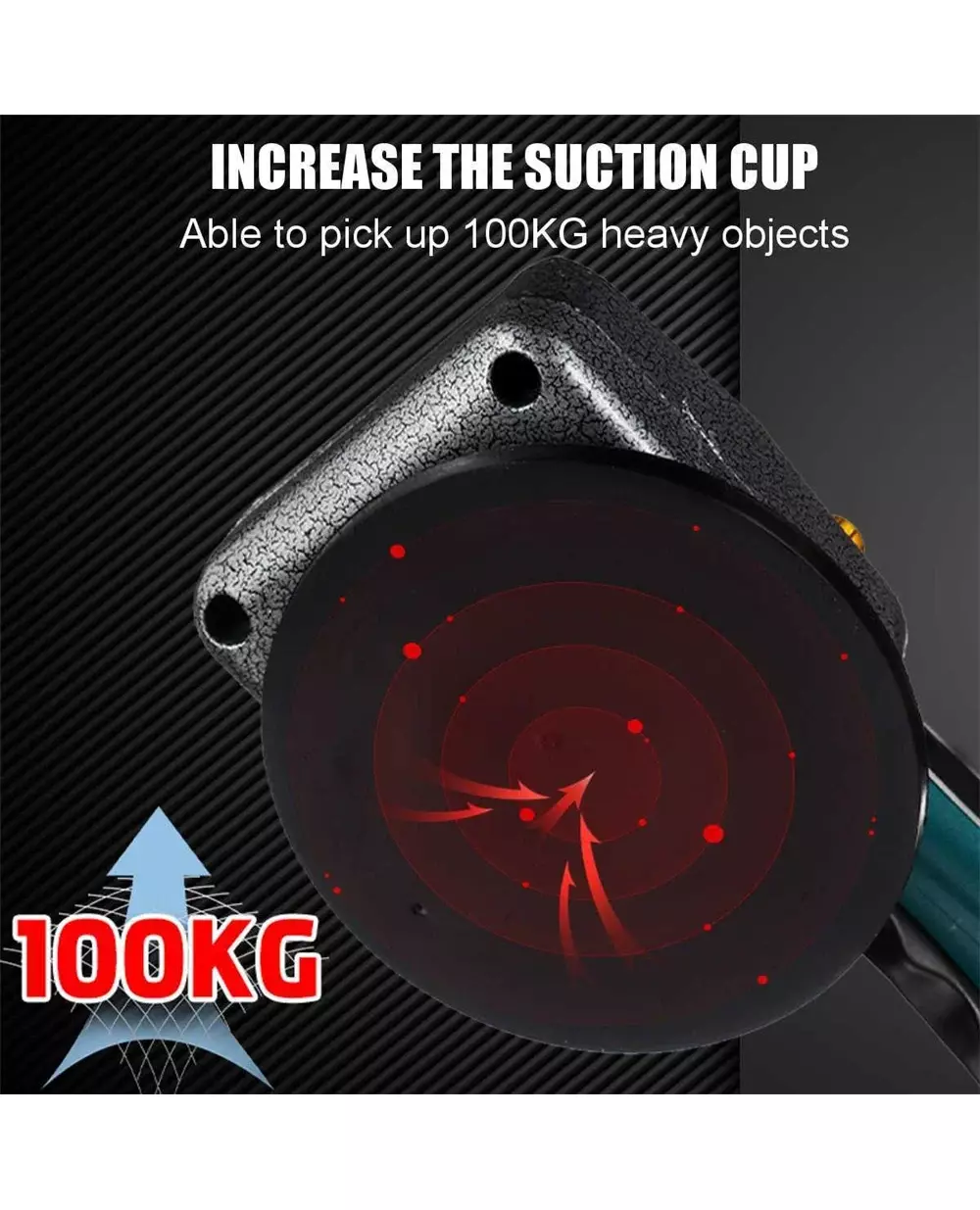

3. Super adsorption capacity: 100kg super adsorption capacity, easy to stick ceramic tiles.

4. One click vibration, uniform force: The vibration frequency can be adjusted according to the size of the brick, with 5 adjustable levels and a horizontal device that can correct the position of the brick and improve efficiency.

5. Battery life: Built in 15000mAh lithium battery, fast charging, and long-lasting battery life.

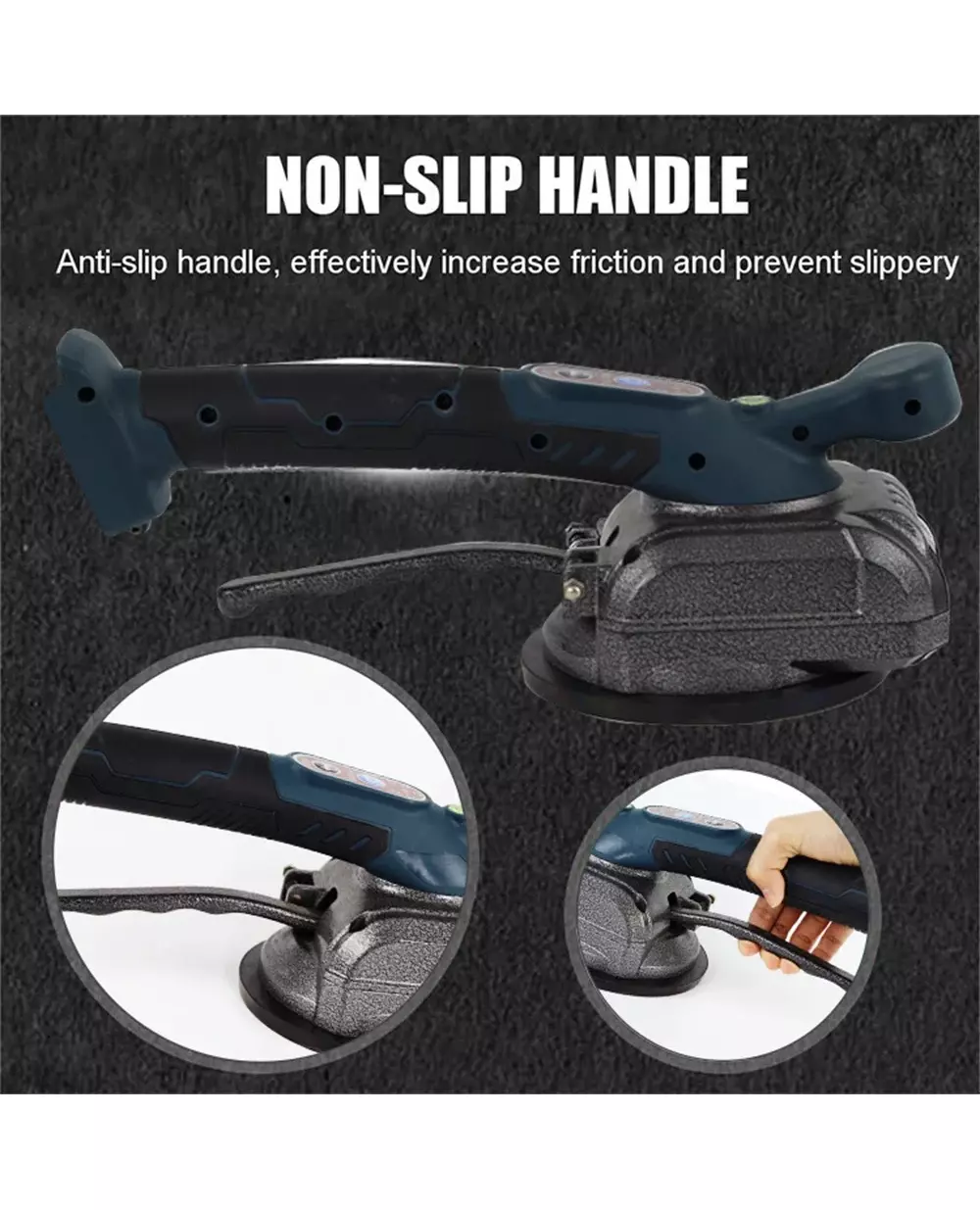

6. One handed operation: Stable and safe operation makes your work easier, suitable for engineering teams and also suitable for home use.

7. Spring lock mechanism design: convenient and labor-saving.

Specifications:

Power: 1000W

Input: 110V/240V 50-60HZ

Output: 10.8V-12.8V

Battery capacity: 15000mAh

Lithium battery capacity: 88VF

Charging time: 1-2H

Working hours:>8H

Vibration frequency: 12000 r/min

Gear: 5th gear

Adsorption strength: 100Kg

Sucker diameter: 12cm/4.7“

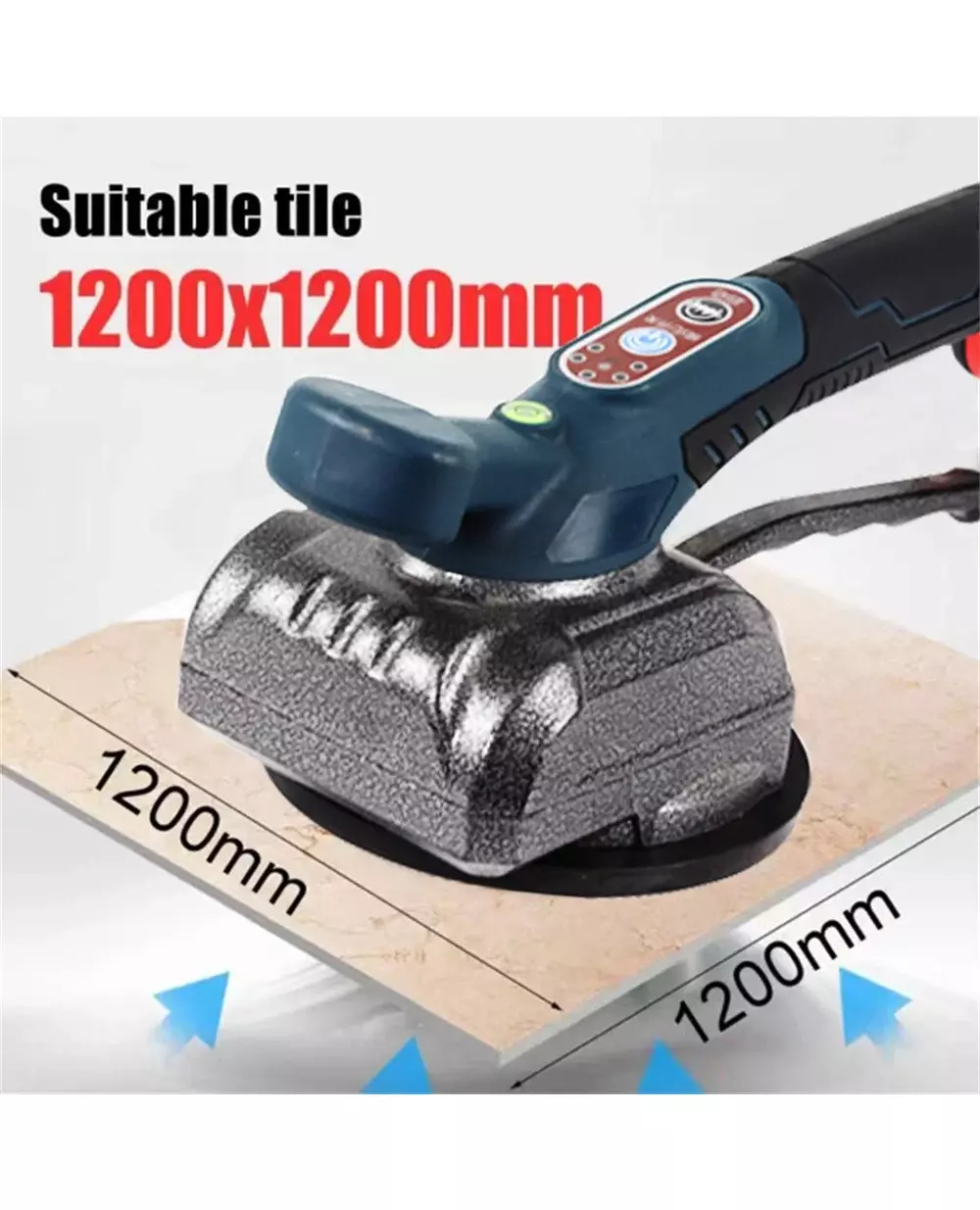

Suitable for ceramic tiles: 1200x1200mm

Product size: 12x32cm/4.7 "x12.6"

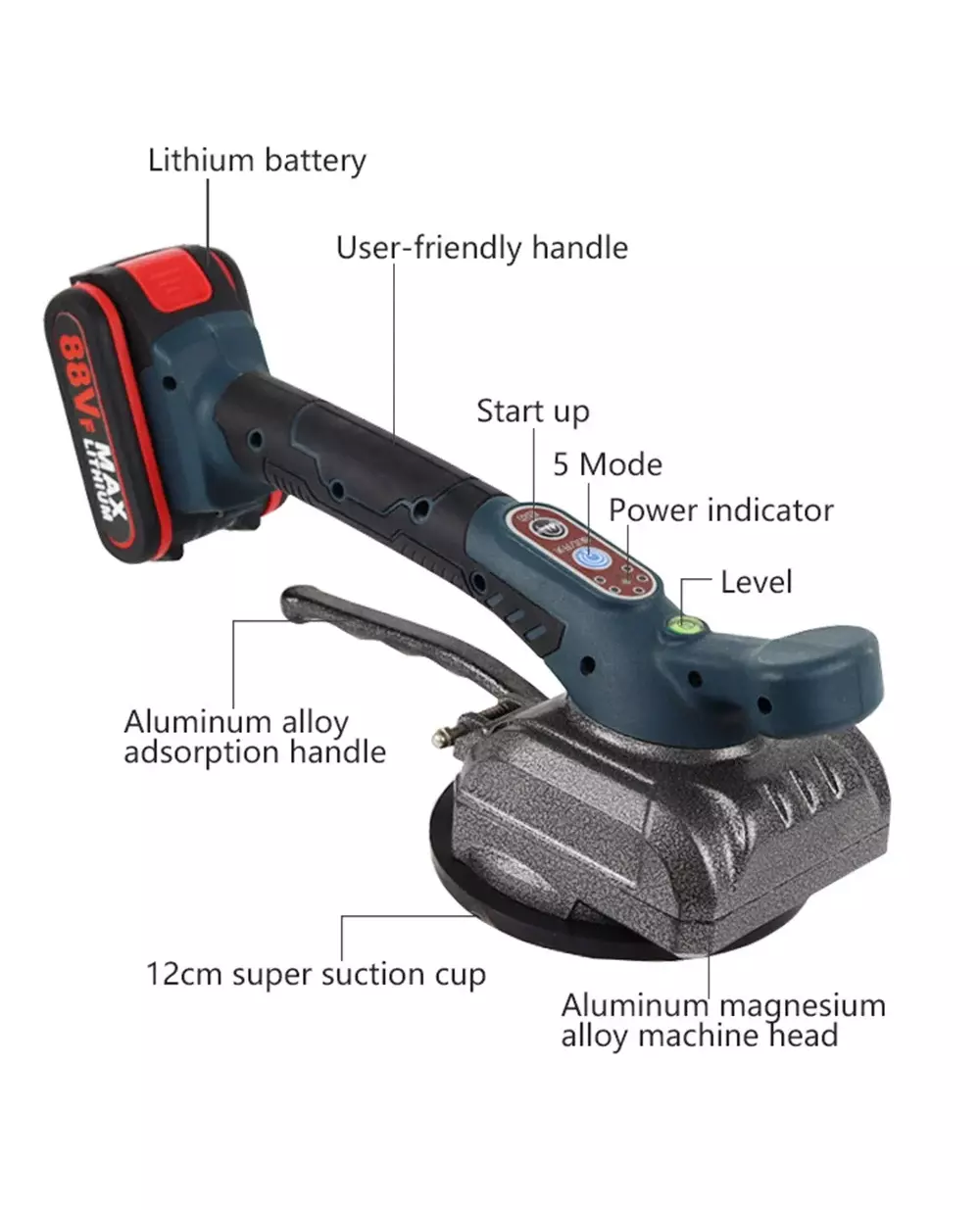

Head material: aluminum magnesium alloy, stainless steel

Usage: Decoration team, decoration project

Application: Ceramic tiles and wall tiles

Packaging list:

1 x ceramic tile laying machine

2 x batteries

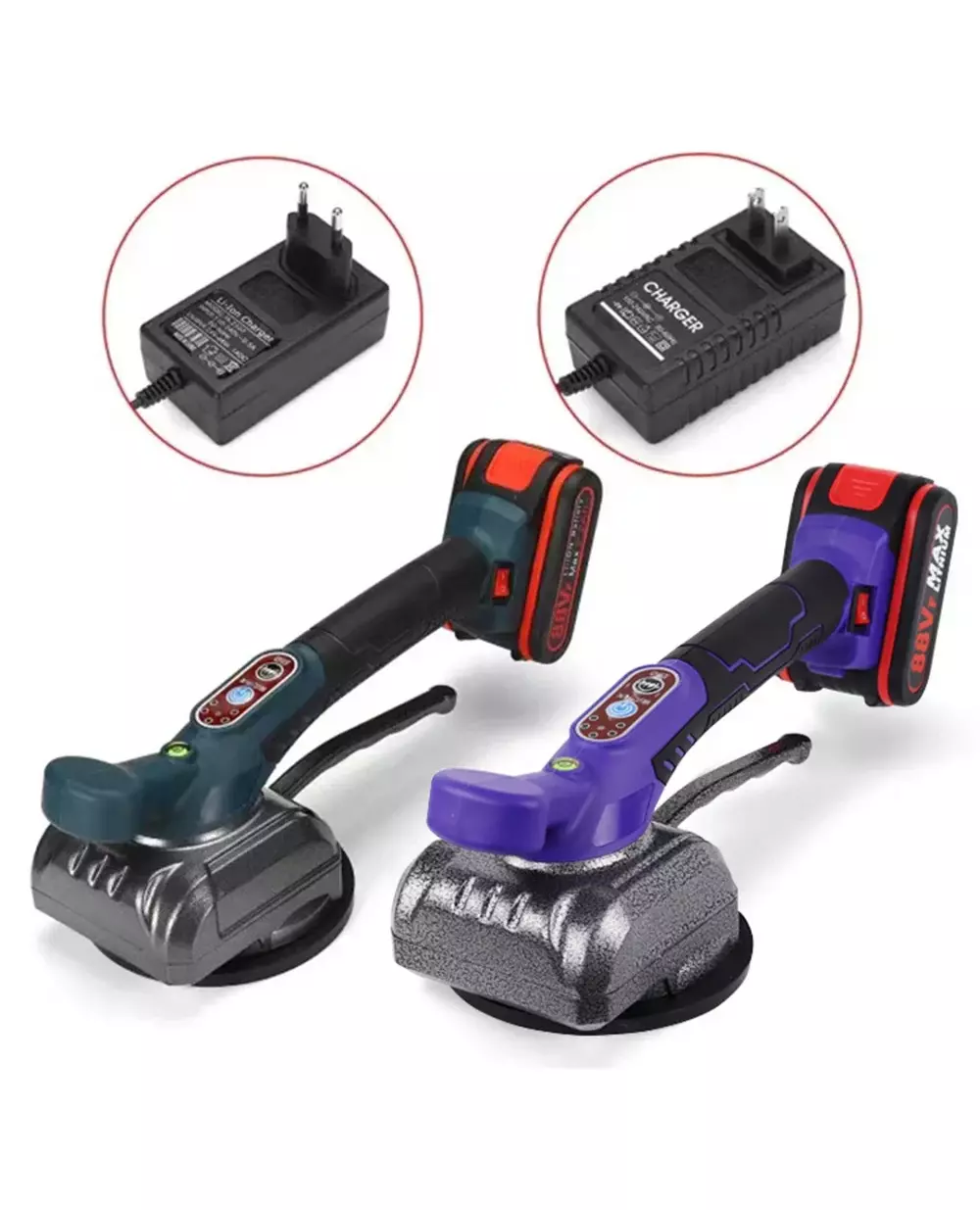

1 x charger

1 x storage bag

1 x User Manual

Instructions for use:

1. Please check the battery before use to ensure it is fully charged;

2. Turn the inverter switch to the left to the minimum, then turn it on and adjust it to the appropriate state according to the requirements;

3. Place the machine on the tiles to be laid, and the suction cup will suck on the tiles. Press the switch and the machine starts working, instantly flattening the protruding part of the ceramic tile.

4. When working, be sure to hold the suction cup and work on the tiles, do not let the machine idle, and do not keep pressing the switch during the pasting process. A rhythm is more conducive to tiling.

Charging instructions:

1. After receiving the machine, press the switch to adjust whether the frequency switch is working. If the indicator light on the machine is not on, please charge it first before using it normally. When connecting the charger and charging, the charging indicator light on the charger will light up.

2. This product charges normally for 3-4 hours, automatically stops when fully charged, and the indicator light is green or not on.

3. The product can work for more than 8 hours after being fully charged, but in order not to affect the service life of this product, please charge it every day during normal use.

4. When using this product normally, it needs to be charged once a day. If not, it should be charged once a month.
